Meritor WABCO Toolbox

Meritor WABCO TOOLBOX software provides PC diagnostic capabilities for Meritor WABCO Pneumatic ABS for tractors and trailers, RSS Plus™ for trailers, Hydraulic ABS, Hydraulic Power Brake (HPB), Electronic Leveling Valves for tractors, Electronic Leveling Valves for trailers, Electronically Controlled Air Suspensions (ECAS) for buses, and OnGuard TM Collision Safety Systems.

1.) mBSP: additional addresses added for parameter saving
2.) mBSP AMP – R2101 Part Numbers added
3.) EBS: ESC end of line added
4.) iABS: axle load monitoring updates. Trailer pull away, brake lining wear, permitted e/f on lifted axle, VIN saving
5.) OnLane: TOOLBOX determines if OnLane1 or Lane2 is connected and invokes the correct diagnostic program.
6.) Updated log component

Meritor Wabco ToolBox 14.5.0 is the latest dealer diagnostic software for all WABCO ABS and HPB modules.

Features:

Displays static (e.g., ECU number) and dynamic (e.g., RPM) information from the system under test.
Displays active and stored system faults, as well as appropriate repair instructions.
Activates system components to verify system integrity, proper component operation, and installation wiring.
J1939 Diagnostics for Pneumatic ABS.
J1939 Diagnostics for ECAS
Next Generation OnGuard Radar Diagnostics
OnLane Lane Departure Warning Diagnostics
J1939 Bus Monitor availability in the main menu
Fault descriptions and data appear in the web browser with links to more information.
Legacy J1708 TOOLBOX is still available for diagnostics
Automated emails and messages communicating software update and enhancement availability.

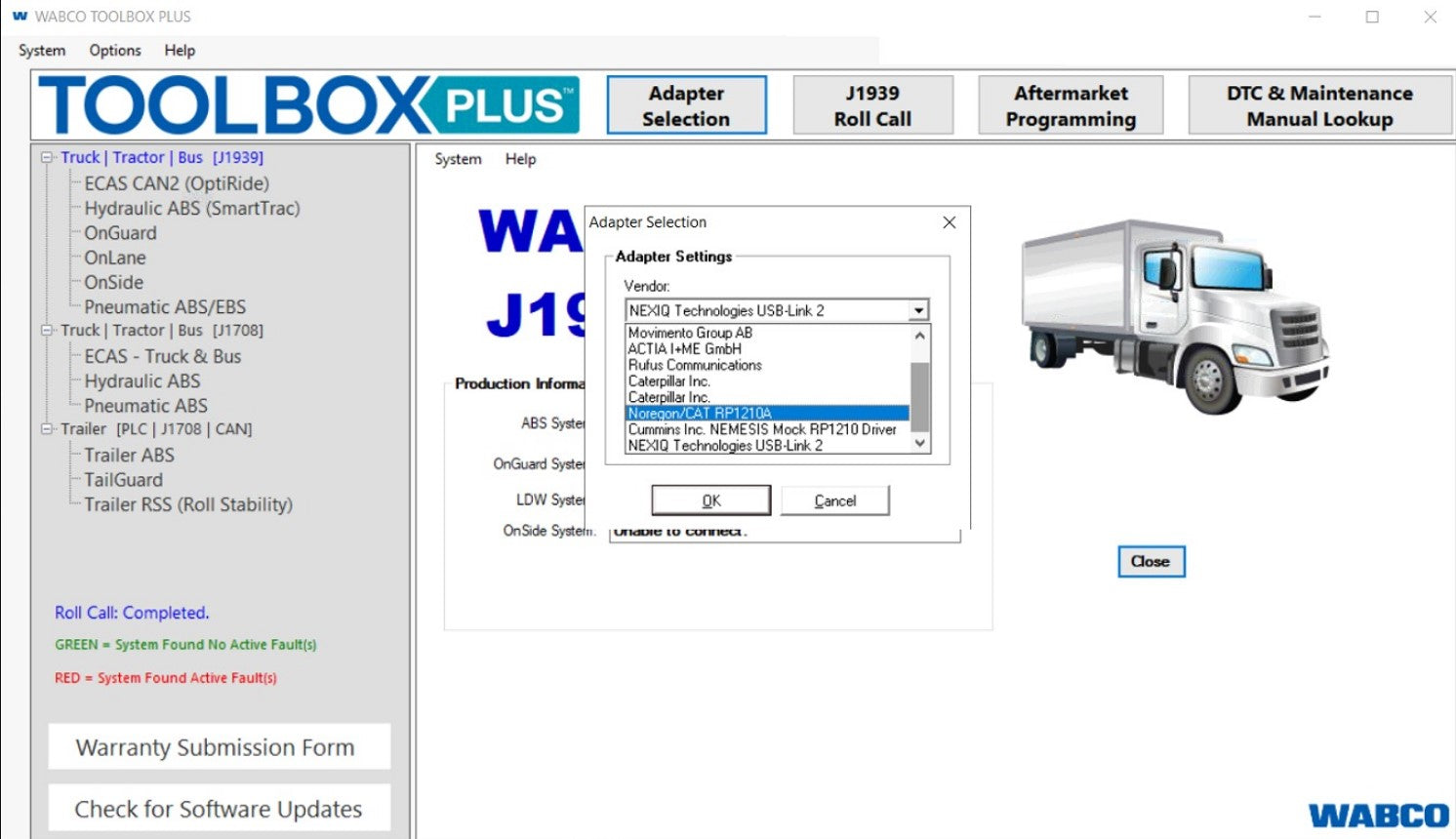

Supported Interfaces:
NEXIQ USB LINK 1, 2 AND 3
DEARBORN ADAPTER (DPA5)
NOREGON DLA

Installation Requirements:

Windows 10/11 operating system
1 GB RAM
1 GB space for full installation
RP1210 compatible Vehicle Data Link (VDA) adapter for SAE J1939, J1708/J1587, or PLC
USB Port or Serial Port for RP1210 adapter

Instructions: Once your purchase is made, technical support will contact you to activate the software.
Activation: 1 PC
