ServiceMaxx

ServiceMaxx is a diagnostic and programming service tool for Navistar engines. This full-featured PC application is designed to address the wide range of diagnostic challenges involved in maintaining a mixed truck fleet. ServiceMaxx is a diagnostic and programming service tool for Navistar engines. Coverage includes Legacy J1708 electronic engine systems, allowing you to run special tests, change parameters, and view and graph engine data. It is the best dealer software for fleet diagnostics and service information.

Basic features

• Reading faults and clearing fault codes
• View, graph, and save engine data

Advanced features

• Diagnostic tests
  • KOEO – Key in ignition, engine off
  • KOER – Key in ignition Engine running
  • KOEO – Injector hum test
  • KOER – Injector Contribution Test
  • Cylinder cutting test (EPA 04′ and later)
  • Injector deactivation tests (EPA 04′ and later)
• Display and change of configurable parameters
  • Spin inhibition
  • Fan control:
  • Idle Shutdown Timer
  • Heating device
  • Warning and protection system
  • Hydraulic pressure regulator
  • Power take-off control
  • Radiator shutter
  • Vehicle speed limit
  • Vehicle retarder
  • Two-speed axle
  • Traction control

J1708 – Engines prior to MaxxForce

• I63BX / DT 466: 3 Box I6 (1994 - 1997)
• V83BX / T444E: 3 Box V8 (1994 - 1997)
• i308 / DT 466: DLC I6 (1998 - 2004)
• T444E: DLC V8 (1998 - 2004)
• I313 / DT 466 and 570: DLCII I6 (2005 - 2006)
• V128 / VT 365: DLCII V8 (2005 - 2006)
• V126 / VT 275: DLCII V6 (2005 - 2006)

J1939 – Engines prior to MaxxForce

• v155: MaxxForce 5 (2007 - 2009)
• v134: MaxxForce 7 (2007 - 2009)
• v152: MaxxForce 7 (2010 - 2012)
• v179: MaxxForce 7 (2013 - )
• i326: MaxxForce DT, 9, 10 (2007 - 2009)
• i334: MaxxForce DT, 9,10 (2010 - 2012)
• i367: MaxxForce DT, 9, 10 (2013)
• i766: MaxxForce 11, 13 (2008 - 2009)
• i783: MaxxForce 11, 13 (2010 - 2012)
• B764: MaxxForce 11, 13 (2013 - 2013.5)
• i770: MaxxForce 15 (2010 - 2013)

SCR Engines

• I746: N9, N10 SCR (2014 - )
• B718: N13 SCR (2013 - 2014)
• B745: N13 SCR (2015 - )

MWM – Pre-MaxxForce engines

• MWM MF 4.8 TCA Euro III and IV (2014-)
• MWM MF 7.2 TCA, Euro III and IV (2014-)

3 programs included

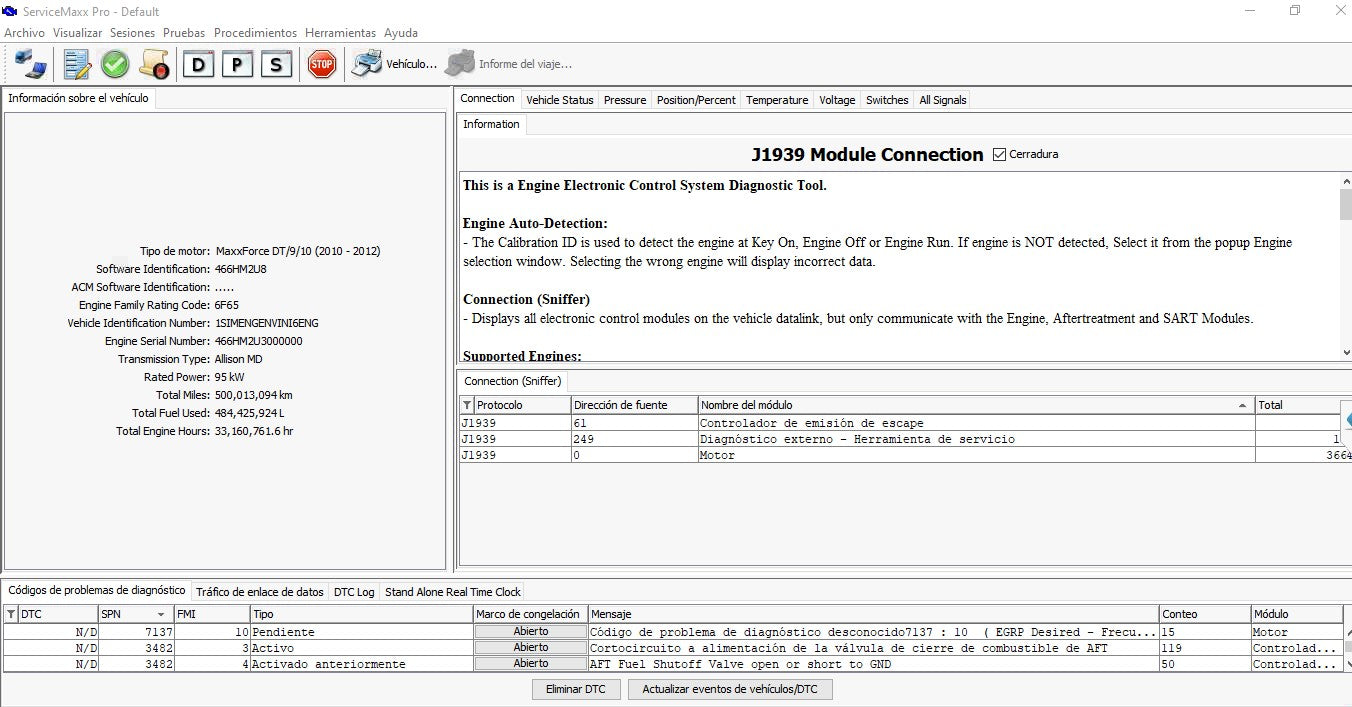

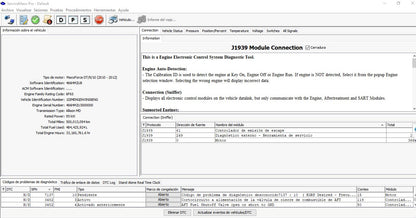

• ServiceMaxx J1939

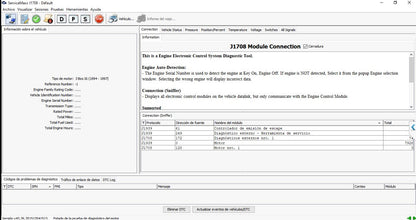

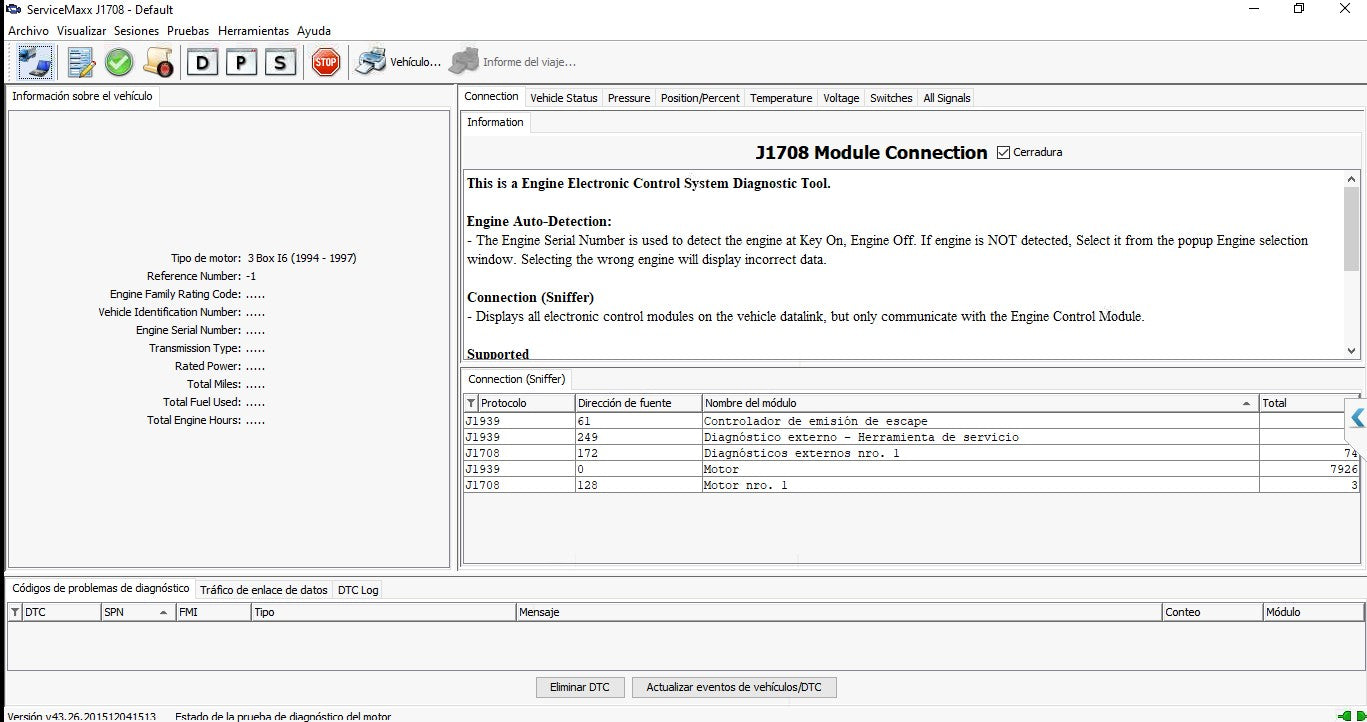

• ServiceMaxx J1708

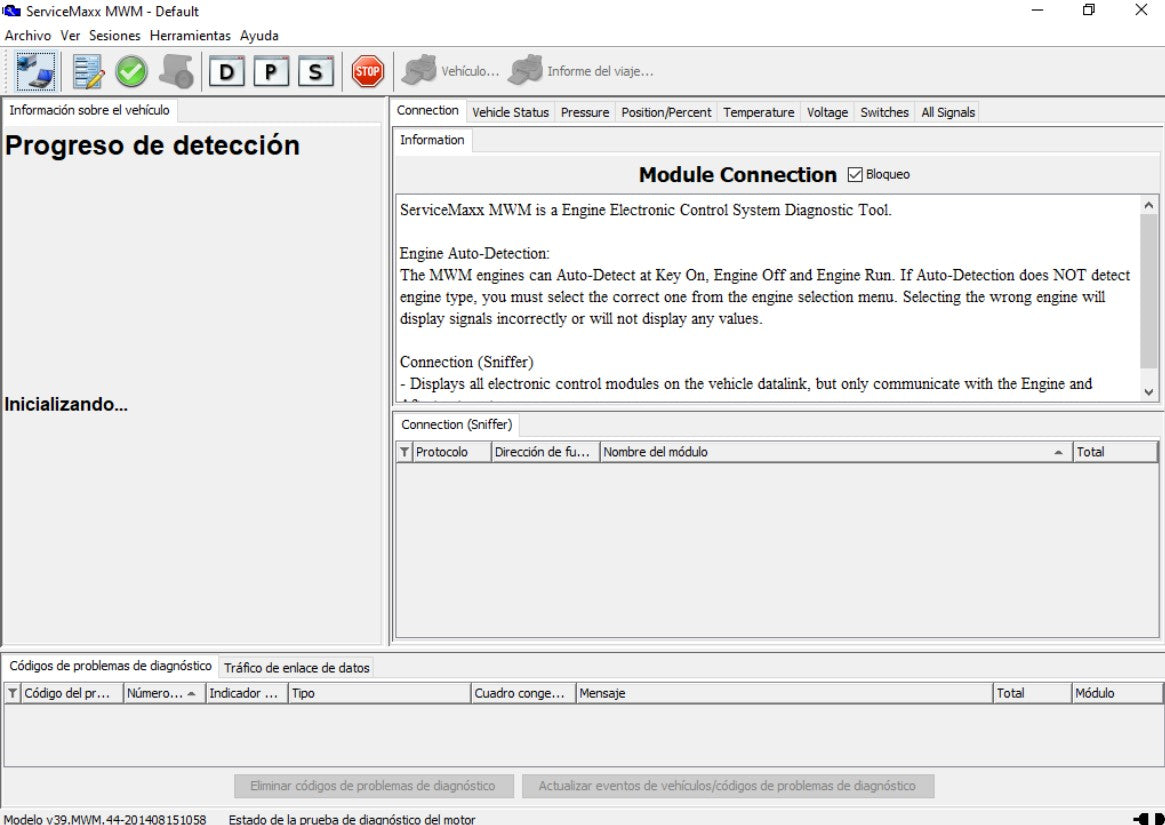

• MWM

Requirements

• Microsoft® Windows 7, 10 or 11
• 1GHz Intel Core 2 Duo, AMD Athlon X2 or better
• 2 GB (32-bit) or 4 GB (64-bit) RAM
• 300 MB of available hard drive space
• 1024 x 768 pixel monitor
• One or more SAE J1708 compliant RP1210A communication devices
• NOTE: Make sure to close ServiceMaxx before installing a new version.

Instructions: Once your purchase is complete, technical support will contact you to activate the software.
Activation: 1 PC
